5E-CYH Railway Wagon Sampler & 5E-CYQ Road Wagon Sampler

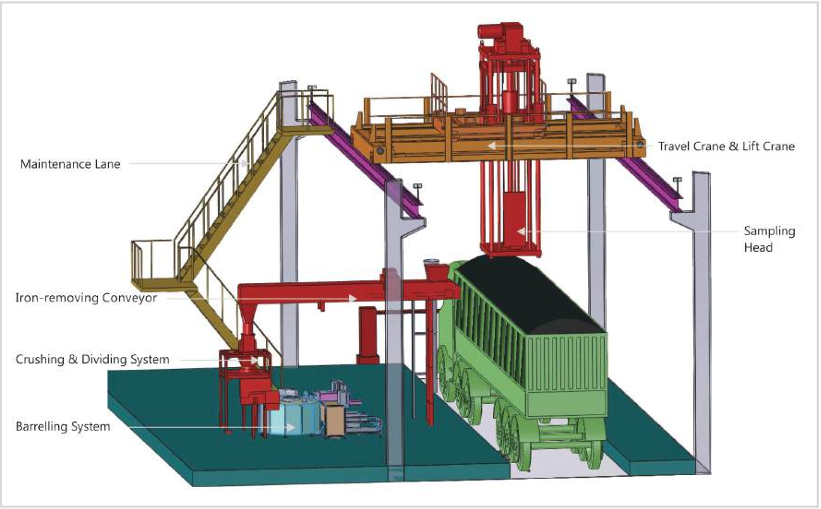

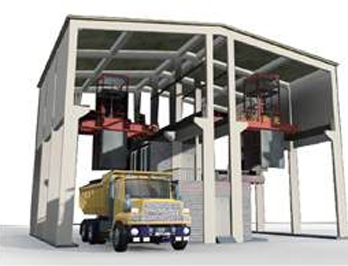

The 5E-CYH Railway Wagon Sampler and 5E-CYQ Road Wagon Sampler are designed for random sampling of bulk materials in the carriages of trains or trucks. They consist of a sampling system, an electrical control system, an automatic ultrasonic positioning system, and a coal surface detecting device.
Product Category: Sampling & preliminary sample preparation, Coal, Metal Ore Mining, Cement & Non-metallic resources, Sampling & sample prep stations.
Features
- Two augers can be equipped to meet the demands of sampling different materials.
- Full-section sampling fully complies with mechanical sampling standards.
- Both single-point sampling and multipoint sampling options are available to increase efficiency.

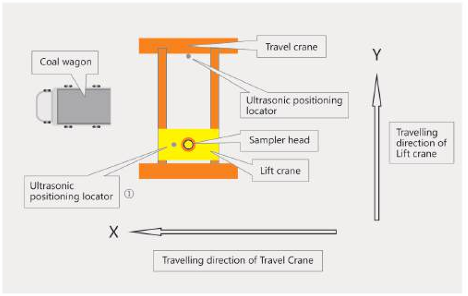

- Automatic ultrasonic positioning technology ensures reliable results without human interference.
- Crushing and division are available through the online sample preparation system.
- Capable of connecting to an information management system.
- Control methods: Touch Screen Controller + PLC/Automatic/Semi-Auto/Manual.
Application
The 5E-CYH Railway Wagon Sampler and 5E-CYQ Road Wagon Sampler are used to collect random samples of bulk materials such as coal, coke, iron, and other metal ores in the carriages of trains or trucks.

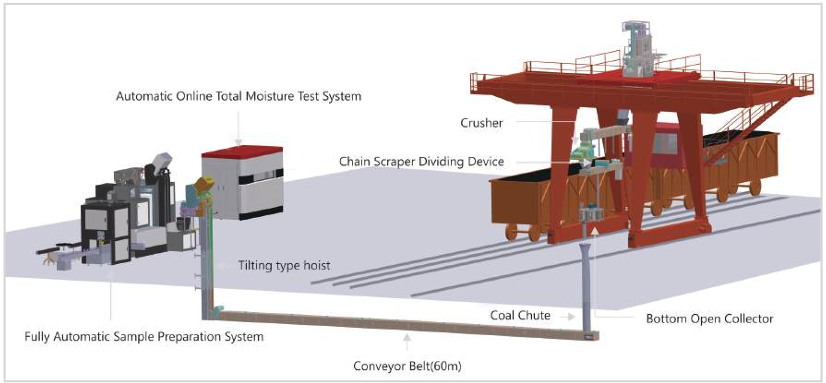

We are also happy to offer integration options, such as the Railway Wagon Sampler + 60m Conveyor Belt + Automatic Sample Preparation System, tailored to your needs.
For more information or inquiries, please contact us.
Datasheet
| Model | 5E-CYH-M Railway Wagon Sampler | 5E-CYH-Q Railway Wagon Sampler |
| Type | Wagon sampler of door type | Wagon sampler of bridge type |
| Power | 40-70kw | 40-70kw |
| Single Point Sampling Time | 70-100s | 70-100s |
| System Efficiency | ≥ 15 units/h | ≥ 15 units/h |
| Power Consumption | 20kw/h-30kw/h | 15kw/h-25kw/h |
| Controlling Mode | Auto/Semi-auto/Manual | Auto/Semi-auto/Manual |
Different type of sampling head for bulk material (nominal top size ≤ 50mm) is as follows.
| Sampling Head | Application | Moisture Adaptability | Model | Aperture of Cutter | Max. Sampling mass |
| Rotary Cylinder Auger | Coal, Limestone, Coke, Lump | ≤35 | CTB20N.00 | Φ200 | 16L |
| CTB15N.00 | Φ150 | 10L | |||
| Long Spiral Auger | Coal | ≤20 | LLC26033J.00 | Φ273 | 110L |
| Short Spiral Auger | Coal Limestone, Pellet, Iron Ore, Zinc Power | ≤10 | LCT273.00 | Φ273 | 15L |
| LCT325.00 | Φ325 | 25L |
