5E-CYP Cross-Belt Sampler

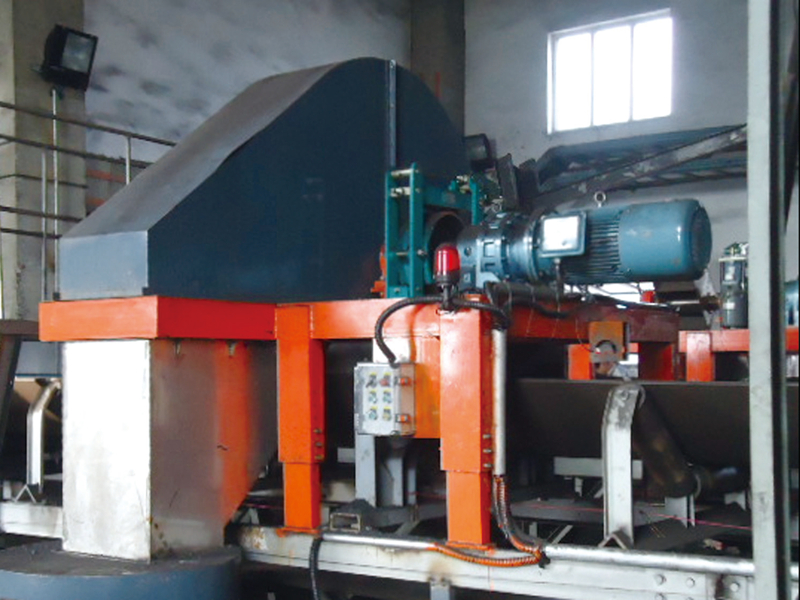

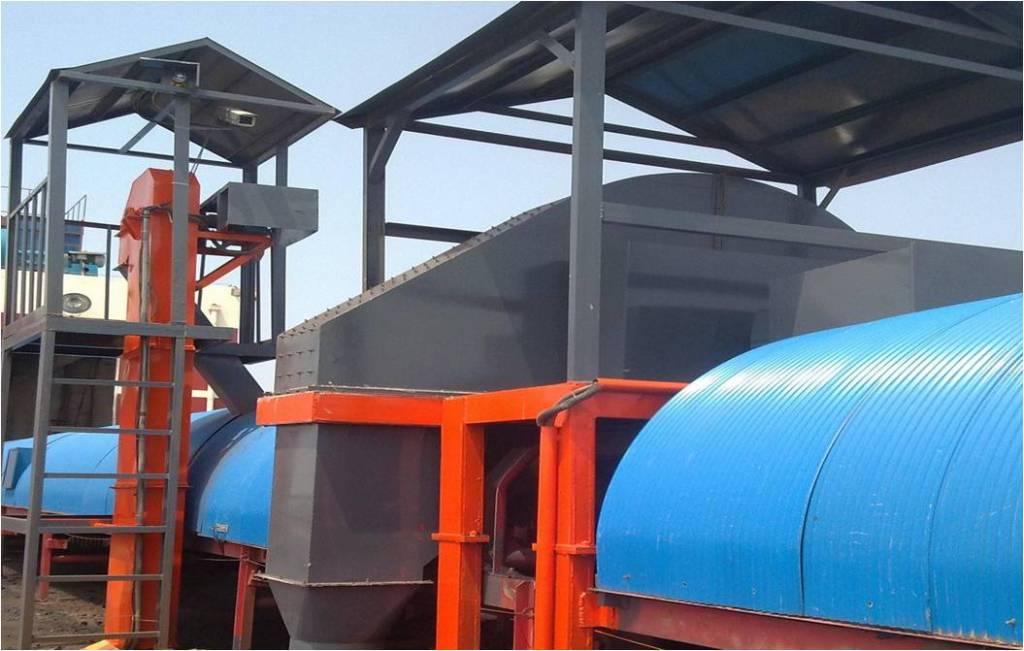

The 5E-CYP Cross-Belt Sampler is a sophisticated mechanical device designed to collect samples from moving streams in the middle section of a belt conveyor. Driven by a motor and reducer, the sampling head rotates to capture a full cross-sectional sample from the belt. This sample is then directed to an online preparation system for crushing and dividing. The retained sample is temporarily stored in a sample collector, while any discarded material is returned to the conveyor belt via the sample return mechanism.
Product Category: Sampling & preliminary sample preparation, Coal, Metal Ore Mining, Cement & Non-metallic resources, Sampling & sample prep stations.
Features
- Mass-basis sampling and time-basis sampling methods available for choice
- Support Roller under the belt ensures smooth cuts
- Auto sensor detects sample stream for automatic sampling
- Crushing and division by the online sample preparation system
- Multiple control methods: Touch Screen Controller + PLC/Automatic/Semi-Auto/Manual

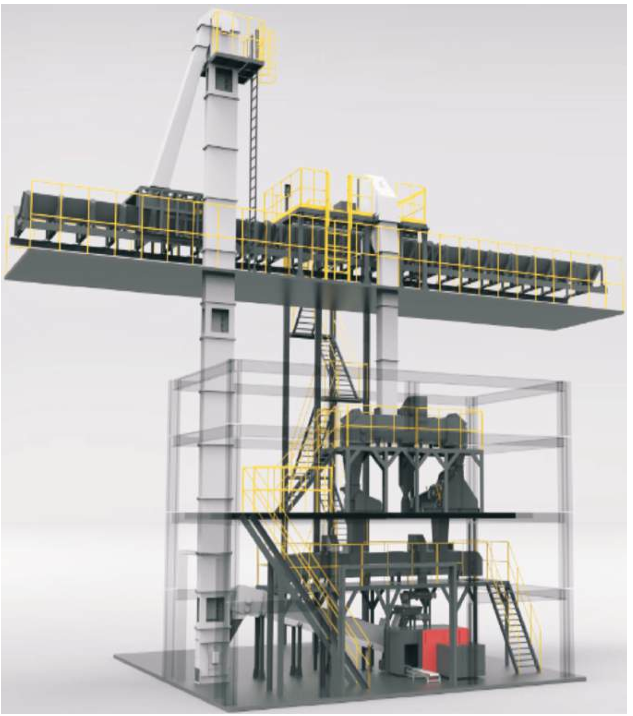

Components: The 5E-CYP Cross-Belt Sampler is mainly composed of sample detector, belt sampler, unloading chute, feeding belt conveyor, crusher, divider, sample collector, sample return device, large moisture sample bypass device, electrical control system and other components.
Application
Application: The 5E-CYP Cross-Belt Sampler is ideal for industries requiring precise and efficient sampling from moving belt conveyors. It ensures accurate and reliable sample collection, making it a valuable tool for quality control and analysis
For more information or inquiries, please contact us.
Datasheet
| Model | 5E-CYP Cross-Belt Sampler |
| Belt Width | 650-2000mm , ISO 5074, GB/T 2565 |
| Belt Speed | ≤5.0m/s |
| Max Sampling Mass | 10-80kg |
| Max Sampling Size | ≤300mm |
| Sampling Period | ≤3min |
| Moisture Adaptability for Sampler | ≤20% |
| Moisture Adaptability for Sample Preparation | ≤16% |
| Sample Reduction Ratio | 1/2-1/32 |
| Power Supply | 3 phases, AC380V, 70kW |
