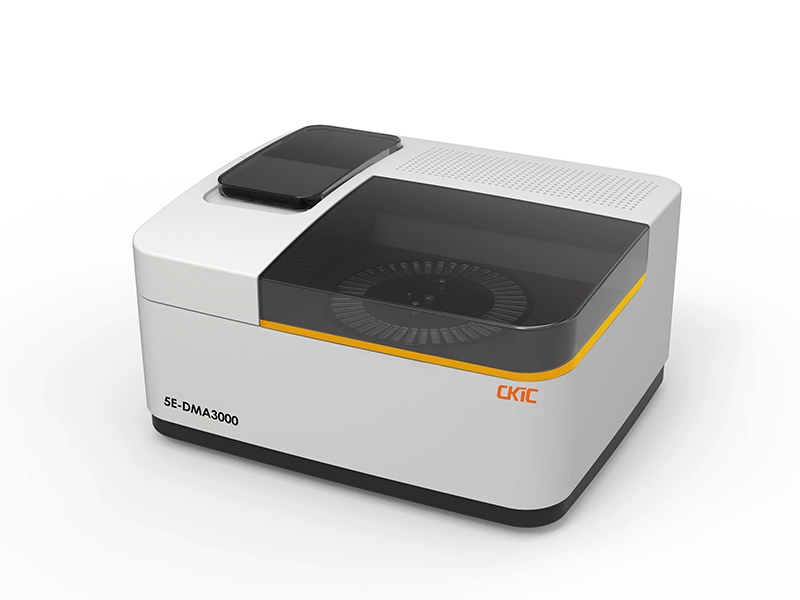

5E-DMA Series Direct Mercury Analyzer
The 5E-DMA Series Direct Mercury Analyzer is designed to determine mercury content in various samples, including soil, sludge, wastewater, food, produce, cosmetics, feed, fertilizer, coal, and copper concentrate. This advanced analyzer can directly measure the total mercury in both solid and liquid samples without the need for complex sample pretreatment. This approach effectively avoids the loss of mercury during the pretreatment process, prevents cross-contamination, and minimizes environmental pollution, ensuring the accuracy of the analysis data.
Compared to the traditional chemical vapor generation-atomic fluorescence spectrometry method, the pyrolysis method used by the 5E-DMA Series is more efficient, accurate, stable, and reliable for measuring mercury. This method significantly reduces labor intensity and saves up to 70% of analysis time and cost.
Product Category: Analytical Instruments, Agriculture & Environment, Coal, Metal Ore Mining, Mercury Analyzer.
Features
Wide Applicability
Suitable for both solid and liquid samples.
Capable of detecting samples in six different levels, ranging from 0.005ng to 1500ng.
High Efficiency
Single test takes only 2-4 minutes.
One batch includes 45 samples, with the ability to add samples in cycles at any time.
Easy Operation
Simply weigh the sample and place it on the auto feeder without digestion.
Complete analysis with just one click on the Start key.
Excellent Repeatability & Accuracy
Integrated catalytic-amalgamation tube ensures measurement repeatability.
High-efficiency composite catalytic agent guarantees accurate test results.
Low Cost
No need for dehydration consumables, reducing consumable costs by 70% compared to traditional methods.
Eco-Friendliness
No harmful chemicals are used in the analysis process.
Exhaust gases produced during analysis are effectively absorbed.
Application
Application The 5E-DMA Series Direct Mercury Analyzer is designed to determine mercury content in various materials, including soil, sludge, wastewater, food, produce, cosmetics, feed, fertilizer, coal, and copper concentrate. It directly measures the total mercury in solid and liquid samples without the need for complex sample pretreatment, effectively avoiding mercury loss, cross-contamination, and environmental pollution, ensuring accurate analysis data. Compared to traditional chemical vapor generation-atomic fluorescence spectrometry, the pyrolysis method is more efficient, accurate, stable, and reliable, significantly reducing labor intensity and saving 70% of analysis time and cost compared with traditional instruments.
| Material | Reference Value (mg/kg) | DMA3000 Test Value (mg/kg) |
| Rice | 0.0017 | 0.0016±0.0002 |
| Citrus leaf | 0.150±0.020 | 0.149±0.003 |
| Celery | 0.0146±0.0024 | 0.0145±0.0005 |
| Chicken | 0.0036±0.0015 | 0.0033±0.0001 |
| Soil (GSS-2) | 0.015±0.003 | 0.014±0.001 |
| Soil (GSS-5) | 0.29±0.03 | 0.30±0.01 |
| Coal | 0.096±0.06 | 0.092±0.003 |
| Coal of South Africa (SARM20) | 0.25±0.03 | 0.25±0.01 |
| Standard Configuration | Optional Configuration |
| Nickel Sample Boat | Quarts sample boat |
| Sample holder | |
| Low Pressure Mercury Lamp | |
| Integrated Catalytic Amalgamation Tube |
Reliable, Automated, and Cost-Effective
5E-DMA Series Direct Mercury Analyzers are designed for efficiency, accuracy, and ease of use, making it an essential tool for laboratories requiring high-precision analysis with minimum time and low cost.
📩 Contact us for more information or to request a demonstration.
Datasheet
| Model | 5E-DMA3000 | 5E-DMA1000 |
| Conforms to Methods | EPA 7473, ASTM D6722, ASTM D7623, GB/T 5009.17, GB/T 31947, HJ 923 | |
| Principle | Pyrolysis-Mercury Amalgamation-Cold Atomic Absorption | |
| Sample Mass | 1500mg (Solid), 1500μL (Liquid) | |
| Max. Sample Loading | 45 | 20 |
| Optical Source | Low-pressure Mercury Lamp | |
| Wavelength | 253.7nm | |
| Detector | Double UV Photodetector | |
| Repeatability | RSD<1% @1ng Hg | |
| Analysis Time | 2-4 minutes (depends on samples) | |
| Detection Limit | 0.001ng | 0.002ng |
| Working Range | 0.005ng-1500ng | |
| Analysis Method | Adjustable according to samples | |
| Carrier Gas | Oxygen (>99.5%) or compressed air | |
| Energy Consumption | Peak<2200W, standby<100W | |
| Calibration | Standard Solution or CRM | |
| Net Weight | 40kg | |
| Dimension (L×W×H) | 590×460×330mm | |
| Power Supply | AC110/220V, 50/60Hz | |
