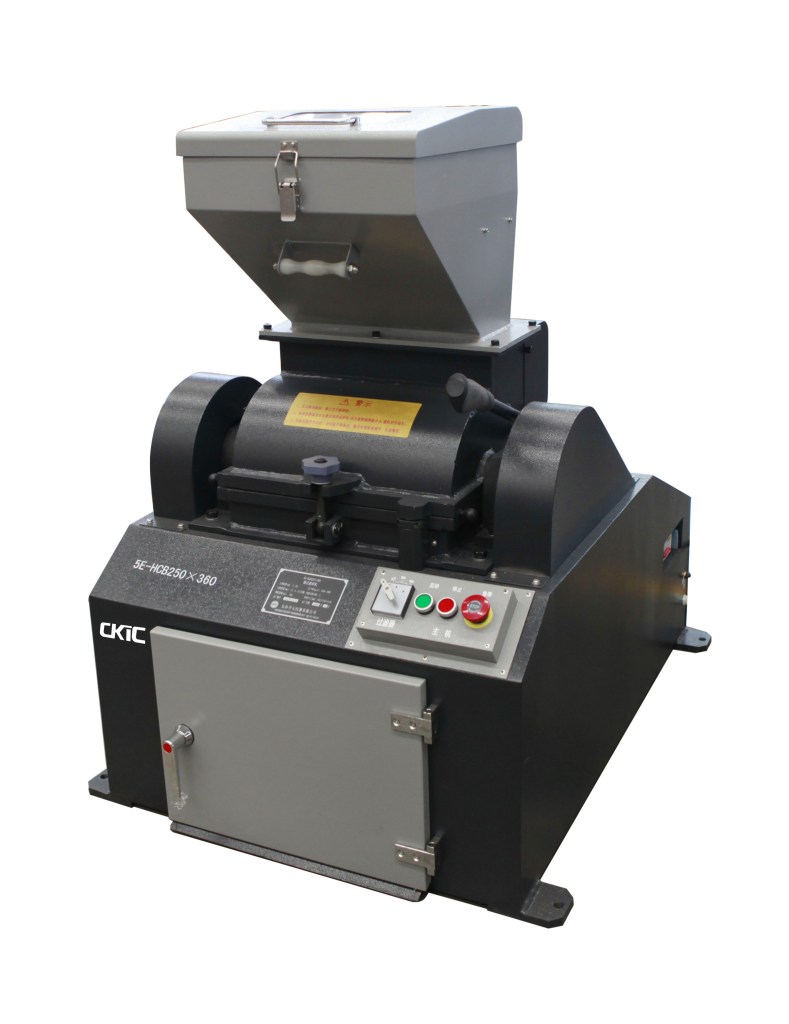

5E-HCB Series Hammer Crusher
The 5E-HCB Series Hammer Crusher is designed for sample preparation of coarse materials such as coal, limestone, mineral waste residue, oil shale, and more.
Product Category: Sample Preparation, Coal, Metal Ore Mining, Cement & Non-metallic resources, Crusher & Pulverizer.
Features
- Hermetic structure enhances the operating environment and minimizes sample contamination.
- Comes with three types of sieve plates, featuring a patented quick-swap design for easy replacement.
- The unique crush chamber and fan-shaped hammer design ensure even and consistent sample discharge.
- Enhanced safety with protection shielding and an emergency stop button.
- Durable crushing components reduce maintenance costs and improve longevity.
- Equipped with an air filter to prevent dust leakage and ensure efficient operation.
Application
The 5E-HCB Series Hammer Crusher is designed for sample preparation of coarse materials such as coal, limestone, mineral waste residue, oil shale, and more.
Models Available
- 5E-HCB180×150 Hammer Crusher
- 5E-HCB250×360 Hammer Crusher
For more information or inquiries, please contact us.
Datasheet
| Model | 5E-HCB180×150 Hammer Crusher | 5E-HCB250×360 Hammer Crusher |
| Feed Size | ≤50mm | ≤150mm |
| Discharge Size | ≤1mm / ≤3mm / ≤6mm | ≤3mm / ≤6mm / ≤13mm |
| Customized sieve hole size available | ||
| Moisture Adaptability | ≤12% | ≤12% |
| Approx.Hardness of Feeding Sample | HRC45-52 | HRC45-52 |
| Throughput | 300~600kg/h | 1200~1800kg/h |
| Diameter of Crusher Chamber | 180mm | 250mm |
| Power Supply | 3 phases, AC380V±10%, 50/60Hz, 1.5kW | 3 phases, AC380V±10%, 50/60Hz , 4kW |
| Noise | ≤85dB | ≤90dB |
| Net Weight | 150kg | 300kg |
| Dimensions(L×W×H) | 560mmx790mmx1080mm | 1052mmx740mmx1129mm |
