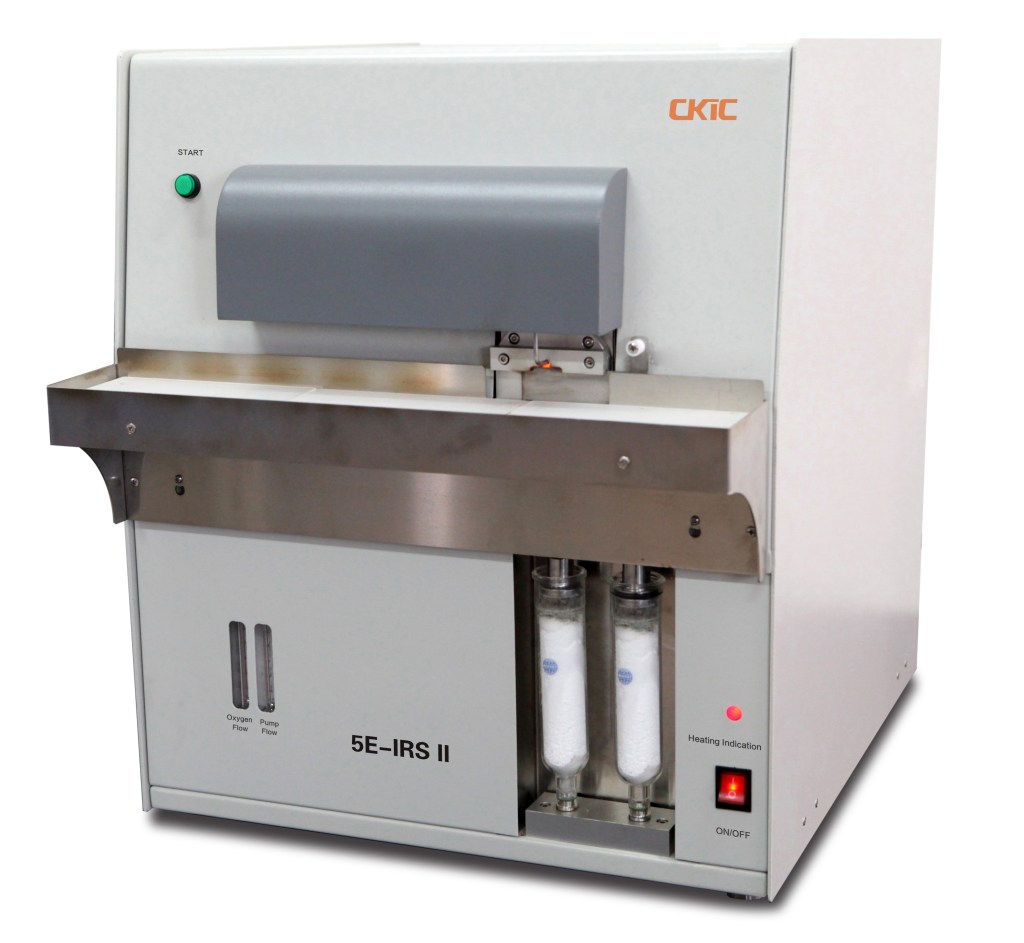

5E-IRSII Infrared Sulfur Analyzer
TThe 5E-IRSII Automatic Infrared Sulfur Analyzer is a state-of-the-art instrument designed to determine the total sulfur content in coal and coke by infrared absorption. This analyzer is widely used in power plants, coal mines, metallurgy, chemical industry, commercial inspection, and scientific research
Product Category: Analytical Instruments, Agriculture & Environment, Coal, Metal Ore Mining, Cement & Non-metallic resources, Sulfur analyzer.
Features
Stability and Accuracy
- The analyzer is equipped with a top-quality ultra-low drift infrared cell, ensuring stability, precision, and accuracy.
- It utilizes a single Si-C spiral tube heating component, providing reliable performance.
- The unique gas tightness structure prevents the effect of SO₂ in the air, ensuring accurate results.
Easy Operation
- The “Quick Start” button simplifies operation, making it easy to use.
- The sample mass can be automatically sent to the balance connection, streamlining the process.
- The upgraded gas circuit design minimizes maintenance work, ensuring long-term reliability
Application
The 5E-IRSII Infrared Sulfur Analyzer is designed to determine the total sulfur content in coal and coke by infrared absorption. It is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, and scientific research.
| Standard Configuration | |
| Computer | Crucibles |
| Main analyzer | Outer combustion tube |
| A/C adapter | Inner combustion tube |
| Anhydrone | Boat stop |
| Silica wool | O-ring kit |
| Tool kit | Standard reference material |
Reliable, Automated, and Cost-Effective
The 5E-IRSII Automatic Infrared Sulfur Analyzer is one of the most reliable analyzers used to determine total sulfur content in various samples.
For more information or inquiries, please contact us.
📩 Contact us for more information or to request a demonstration.
Datasheet
| Specification | Details |
| Model | 5E-IRSII |
| Conforms to Method | AS 1038.6.3.3, ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016, ISO19579, GB/T 214, GB/T 25214, GB/T 28732, BS 1016 |
| Max. Sample Loading | 1 sample per batch manually |
| Analysis Method | Infrared absorption |
| Analysis Resolution | 0.01% or 100ppm |
| Sulfur Range | 0.1%-30% (customized range available) |
| Analysis Time per Sample | ≤150s |
| Analysis Temperature | 1300°C |
| Temperature Control Precision | ± 1°C |
| Sample Mass | 200mg-400mg depending on sample condition |
| Power Supply | Single phase, AC220±10%, 50/60Hz, ≤4kW |
| Net Weight | 60kg |
| Dimensions (L×W×H) | 540mm x 700mm x 610mm |
| Test Data | |||||
| Sample name | Sample Weight | Mud (%) | Stad (%) | SDT (%) | (+/- 0.066) |
| Control 6H0160-1 | 0.3092 | 5.16 | 2.482 | 2.617 | |
| Control 6H0160-2 | 0.3077 | 5.16 | 2.496 | 2.632 | |
| Average | 2.624 | ||||
| Reference Value | 2.625 | ||||
| ASTM D4239-10 Repeatability Limit ® | 0.099 | ||||
| ASTM D4239-10 Repeatability Limit ® | 0.256 | ||||
| Repeatability | 0.015 | ||||
| Reproducibility | 0.001 | ||||
| Conclusion: The 5E-IRSII Infrared Sulfur Analyzer exceeds the ASTM precision requirement | |||||
