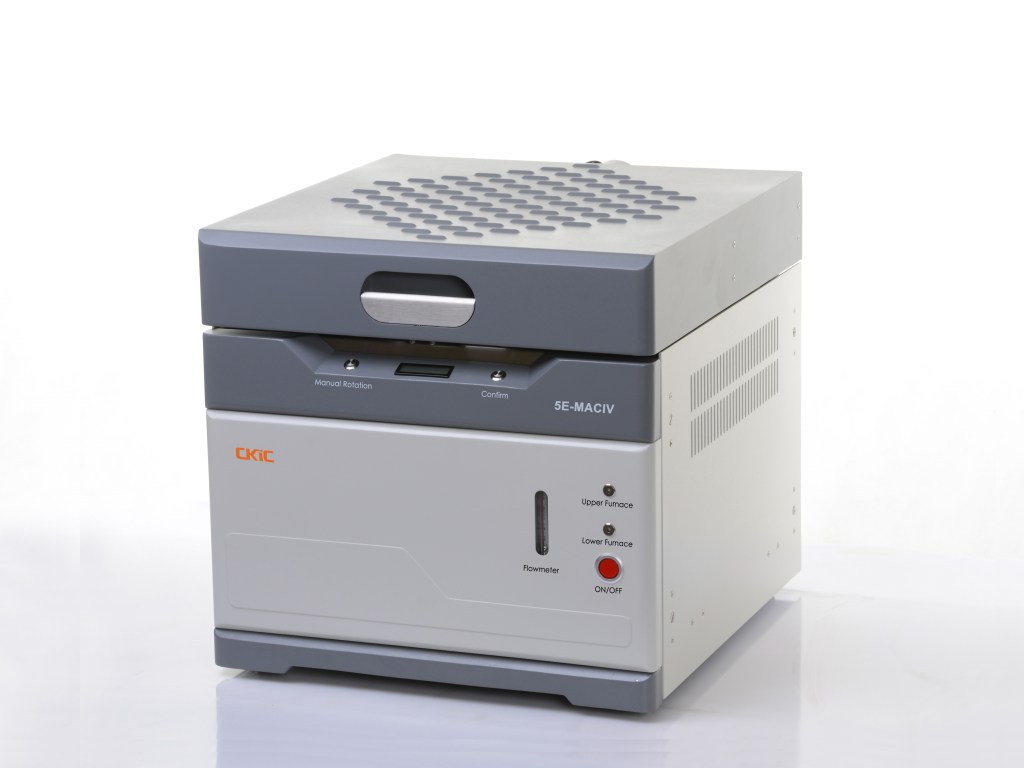

5E-MACIV Automatic Proximate Analyzer -TGA
The 5E-MAC IV Proximate Analyzer (Thermogravimetric Analyzer, TGA) is used to determine the moisture, ash, volatile matter, and fixed carbon in coal and coke. It can also determine residual ash and slag combustibles in accordance with ASTM standards. This analyzer is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, and education.
Product Category: Analytical Instruments, Agriculture & Environment, Coal, Metal Ore Mining, Cement & Non-metallic resources, TGA.
Features
Proximate analysis (TGA) includes analysis of moisture content, ash content, volatile matter and the calculation of fixed carbon. Accurate results from proximate and ultimate analysis of coal, coke and biofuel are an important step in mining and processing operations.
High Efficiency
- Analyze up to 19 samples in just 2 hours for moisture, ash, volatile matter, and fixed carbon calculations.
- Features an embedded furnace wire for enhanced safety and more uniform temperature distribution.
- Double control functionality (one PC managing two furnaces) is available for improved convenience.
High Accuracy & Stability
- Utilizes thermogravimetric technology with blank crucible calibration in the same atmosphere to ensure precise weighing.
- Adjustable ramp rates and real-time thermal weight curve displays for seamless data and graph management.
Easy Operation & Flexibility
- Operator’s involvement is limited to just loading sample to crucible.
- Real-time balance readings provide easy control over sample weight precision.
- Widely applicable for materials such as limestone, cement, and iron ore.
Application
The 5E-MAG6700 Automatic Proximate Analyzer, equipped with the 5E-MVC6700 and a moisture & ash analyzer, is used to determine the moisture, ash, and volatile matter in coal, coke, biomass, limestone, iron ore, food, and feedstuffs by the thermogravimetric method. It can also determine residual ash and slag combustibles in accordance with ASTM standards. This analyzer is widely applied in power plants, coal mines, metallurgy, food industry, chemical industry, commercial inspection, scientific research, and education. Specially, applicable for materials such as limestone, cement, and iron ore.
Standard Configuration
| Computer | Weighing road |
| Main analyzer | Three-core power socket and plug/20A |
| Air compressor | Crucible lid for volatile matter |
| Crucibles | Glass spoon (small size) |
| Weighing rod base | Standard Reference Material (GBW) |
| Tool kit |
Enhance your laboratory capabilities with the 5E-MACIV Proximate Analyzer, for comprehensive results.
For more information or inquiries, please contact us.
Datasheet
| Specification | 5E-MACIV |
| Conforms to Method | ASTM D7582, ASTM D5142, ISO 17246, GB/T 30732, ASTM D3175 |
| Control Ability | 2 units/1 PC available |
| Maximum Ramp Speed | 50°C/min |
| Analysis Time | ≤120mins for 38 samples of three parameters (Double Control) |
| Sample Mass | 0.8-1.2g recommended / up to 5g |
| Temperature Range | Up to 1000°C |
| Temperature Control Precision | ±2°C |
| Power Supply | Single phase, AC220±10%, 50/60Hz, ≤5kW |
| Net Weight | 50kg |
| Dimensions (L×W×H) | 550mm×580mm×530mm |
