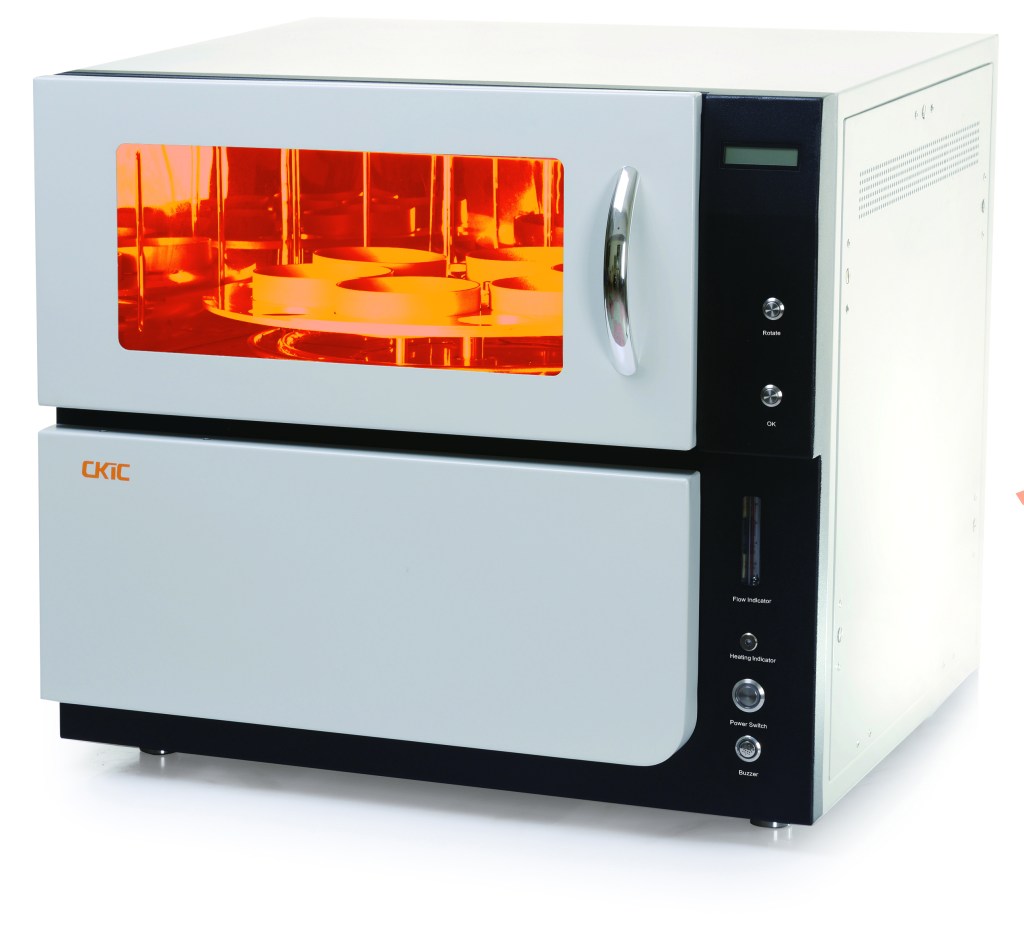

5E-MW 6513 Automatic Moisture Analyzers
The 5E-MW Series Automatic Moisture Analyzers are designed to measure the moisture and total moisture content in various samples, including coal, coke, biomass, and more. These analyzers are widely used across industries such as thermal power plants, coal industry, metallurgy, petrochemical, cement plants, and research institutes.
Product Category: Analytical Instruments, Agriculture & Environment, Coal, Metal Ore Mining, Cement & Non-metallic resources, Moisture Analyzer.
Features
Differences Between the 5E-MW6513 and Other 5E-MW Series Equipment
- Sample Type and Mass:
- The 5E-MW6513 can handle 13mm and 6mm total moisture samples, with a sample mass of 2 of 500g (13mm) total moisture samples and 6 of 100g (6mm) total moisture samples.
- In contrast, the 5E-MW6522 and 5E-MW6536 handle ≤0.2mm inherent moisture samples (0.9-1.1g) and ≤6mm total moisture samples (10-12g) respectively.
- Analysis Method:
- The 5E-MW6513 uses nitrogen charging or air drying for analysis.
- The 5E-MW6522 and 5E-MW6536 are capable of drying in a nitrogen atmosphere.
- Coal Type:
- The 5E-MW6513 is suitable for anthracite, bituminous, lignite, and coke.
- The 5E-MW6522 and 5E-MW6536 are suitable for anthracite, bituminous, and lignite.
- Temperature Control Range:
- The 5E-MW6513 has a temperature control range of room temperature to 150°C.
- The 5E-MW6522 and 5E-MW6536 have a maximum temperature of 200°C.
- Weighing Method:
- The 5E-MW6513 features a built-in real-time display for precise weighing.
- The 5E-MW6522 and 5E-MW6536 do not include a display for weighing.
- Power Supply and Dimensions:
- The 5E-MW6513 requires a power supply of single phase, AC220±10%, 50/60Hz, ≤2.5kW and has dimensions of 700mm×650mm×625mm.
- The 5E-MW6522 and 5E-MW6536 require a power supply of single phase, AC220±10%, 50/60Hz, ≤3kW and have dimensions of 720mm x 650mm x 500mm.
Application
The 5E-MW Series Automatic Moisture Analyzers are designed to determine the moisture and total moisture content in various samples such as coal, coke, biomass, and more. These analyzers are widely used in industries including thermal power plants, coal industry, metallurgy, petrochemical, cement plants, and research institutes.
Enhance your laboratory capabilities with the5E-MW Series Automatic Moisture Analyzers for comprehensive results.
For more information or inquiries, please contact us.
Datasheet
| Specification | 5E-MW6513 |
| Sample Type | 13mm, 6mm Total Moisture Sample |
| Sample Mass | 2 of 500g (13mm) Total Moisture Sample, 6 of 100g (6mm) Total Moisture Sample |
| Analysis Method | Nitrogen Charging or Air Drying |
| Coal Type | Anthracite, Bituminous, Lignite, and Coke |
| Temperature Control Range | Room Temperature – 150°C |
| Temperature Control Precision | ±2°C |
| Weighing Method | Built-in Balance, Real-time Weighing |
| Power Supply | Single phase, AC220±10%, 50/60Hz, ≤2.5kW |
| Net Weight | 60kg |
| Dimensions (L×W×H) | 700mm × 650mm × 625mm |
