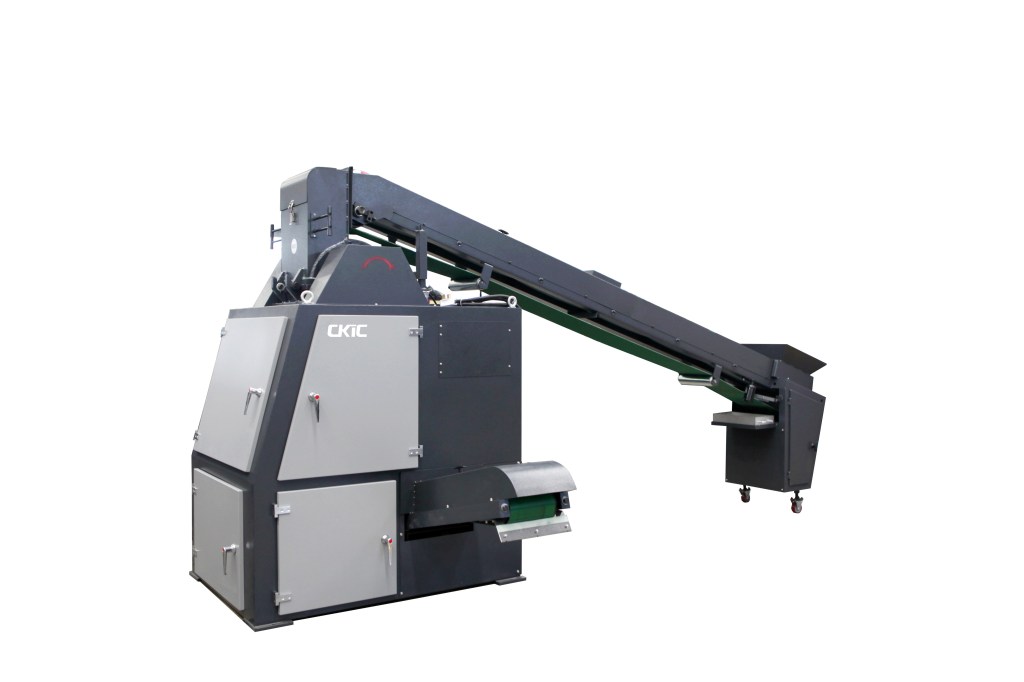

5E-PA Series Sample Preparation Combination Apparatus
The 5E-PA Series Sample Preparation Combination Apparatus is designed for efficient sample preparation of coarse materials such as coal, minerals, etc. This versatile system not only performs crushing tasks but also provides a dividing function, making it essential for use in industries such as power generation, coal, chemicals, metallurgy, building materials, and geology.
Product Category: Sampling, Sample preparation, Coal, Metal Ore Mining, Cement & Non-metallic resources, Sampling & sample prep stations.
Features
- Specialized Crushing Chamber: The apparatus is equipped with a fan-shaped hammer in the crushing chamber to minimize moisture loss. It includes 13mm and 6mm sieving plates, ensuring consistent crushing and even particle size distribution.
- Integrated Crushing and Dividing System: The crusher and divider are seamlessly combined through an integrated mechanical drive design, optimizing both efficiency and performance.
- Hermetic Welding: Advanced hermetic welding ensures dust-free operation, enhancing cleanliness and safety in the working environment.
- Uniform Feeding and Safety Features: The system ensures even feeding of samples and is equipped with a permanent magnetic de-ironing separator to remove metallic impurities, ensuring safe operation.
- Ease of Maintenance: Designed with easily accessible doors, the apparatus allows for convenient cleaning and maintenance, reducing downtime and maximizing operational efficiency.
Application
The 5E-PA Series Sample Preparation Combination Apparatus is ideal for preparing samples of coarse materials such as coal, minerals, and other similar substances. It efficiently performs both crushing and dividing functions, making it essential for accurate sample preparation. This apparatus is widely used across industries such as power generation, coal, chemical, metallurgy, building materials, and geology for various sample preparation tasks.
For more information or inquiries, please contact us.
Datasheet
| Model | 5E-PA2×2 | 5E-PAB2×2 |
| Method | Two grades for crushing, Two grades for dividing | |
| Feed Size(mm) | ≤150 | |
| Discharge Size(mm) | First discharge size ≤6, ≤13, Second discharge size 1-6 adjustable | |
| Moisture Adaptability | ≤12% | |
| Productivity(kg/h) | 800-1300 | |
| Division Ratio | 1/8, 1/16 adjustable | |
| Power Supply | 3 phases, AC380V±10%, 50Hz,12kW | |
| Discharging Belt Conveyor | No | Yes |
| Net Weight | 1100kg | 1300kg |
| Dimensions(L×W×H) | 3794mmx1030mmx1864mm | 3794mmx1690mmx1864mm |
