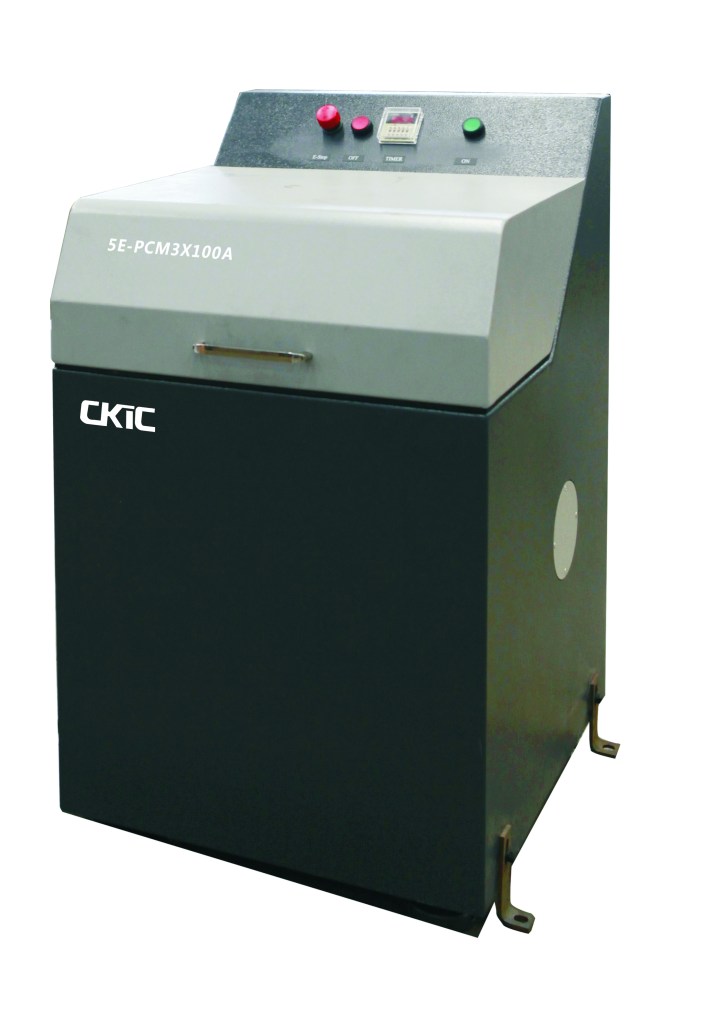

5E-PCM Series Pulverizer
The 5E Series Pulverizer is designed to pulverize samples after crushing in industries such as power plants, coal mines, chemical industry, metallurgy, building materials, and geology. It is used to prepare analysis samples of particulate material.
Product Category: Sample preparation, Coal, Metal Ore Mining, Cement & Non-metallic resources, Crusher & Pulverizer.
Features
- Customized vibration motor for high efficiency.
- Wear-resistant alloy steel, tungsten carbide, and other materials enhance wear resistance and extend service life.
- The clamping mechanism of the bowl body features a rapid clamping structure (Patent Number: 200920177307.3).
- Equipped with a double-layer frame and multi-layer damping measures to reduce vibration energy, overcoming swinging and crawling.
- Easy installation without the need for fixed foundations.
- Enhanced safety with a power-off switch when opening the lid.
Application
The 5E Series Pulverizer is designed to pulverize samples after crushing in industries such as power plants, coal mines, chemical industry, metallurgy, building materials, and geology. It is used to prepare analysis samples of particulate material.
For more information or inquiries, please contact us.
Datasheet
| Model | 5E-PCM1×100 | 5E-PCM3×100 |
| Number of Crushing Bowls | 1 | 3 |
| Gross mass of sample | 1×100g | 3×100g |
| Feed Size | ≤13mm | |
| Discharge Size | ≤0.2~0.071mm | |
| Approx. Hardness of Feeding Sample | HRC50-55 | |
| Working Volume of Bowl | 120-130ml | |
| Power Supply | 3 phases, AC380V±10%, 50/60Hz, 1.5kW | |
| Noise | ≤85dB | |
| Net Weight | 170kg | 190kg |
| Dimensions(L×W×H) | 520mm×580mm×860mm | |
