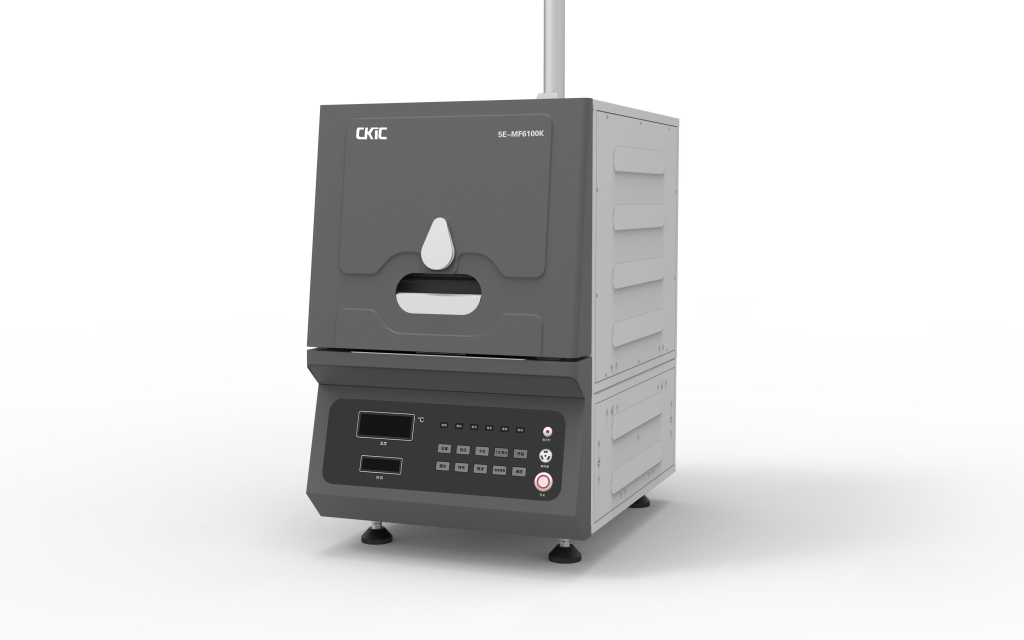

5E Series Muffle Furnace
The 5E Series Muffle Furnace is engineered for accurate and efficient determination of ash and volatile matter in coal, coke, biomass, and other organic materials. With high-temperature stability, fast heating capabilities, and seamless data integration, it delivers reliable performance for laboratories worldwide. These furnaces are widely used in various industries such as thermal power plants, coal industry, metallurgy, petrochemical, cement plants, and research institutes.
Product Category: Analytical Instruments, Agriculture & Environment, Coal, Metal Ore Mining, Cement & Non-metallic resources, Furnace.
Features
- High Reliability and Efficiency: The 5E Series Muffle Furnace ensures high reliability and efficiency with its advanced design and technology. It can perform multiple batches of tests in a day, with the temperature rising to 950°C within 15 minutes.
- Easy Operation: The furnace features an easy-to-read LCD backlight display for temperature and time. The front door has a furnace hole available for calibration.
- Automatic Temperature Control: The furnace can automatically complete the temperature controlling procedure by choosing different programs, such as slow ash and volatile matter programs. Users can adjust the heating temperature and time as needed.
- Over-Temperature Alarm: Equipped with an over-temperature alarm and SCM/PC temperature control, the furnace ensures safe and reliable operation.
- Data Recording and Transmission: One PC can connect to more than one muffle furnace, allowing for the recording and transmission of analysis data for each set, including sample number, sample mass, heating time, and results.
- Customizable Settings: Users can customize the settings to meet their specific requirements, ensuring flexibility and convenience.
Application
The 5E Series Muffle Furnace, including models 5E-MF6400 and 5E-MF6100K, is designed to determine the ash and volatile matter in coal, coke, biomass, and other organic materials. These furnaces are widely used in various industries such as thermal power plants, coal industry, metallurgy, petrochemical, cement plants, and research institutes.
Standard and Optional Configurations
- Standard Configuration: Main analyzer, ash crucibles, volatile matter crucibles, lids for volatile matter crucibles, holder for ash crucible, holder for volatile matter.
- Optional Configuration: Flow control device (0-30L/min).
With over 5,000 units in operation worldwide, the 5E Series Muffle Furnace is a trusted solution for high-precision, high-efficiency laboratory analysis.
Enhance your laboratory capabilities with the 5E Series Muffle Furnace for comprehensive results.
For more information or inquiries, please contact us.
Datasheet
| Specification | 5E-MF6400 | 5E-MF6100K |
| Conforms to Method | AS 1038.3, ASTM D1102/D3174/D7582/E830, GB/T 212, UNI EN 15148, UNI EN15403, UNI EN ISO 18122, ISO 562, ISO 18123 | |
| Embedded Furnace Wire | Yes | Yes |
| Max. Temperature | 1000°C | |
| Temp. Control Precision | ±3°C | |
| Power Supply | Single phase, AC220±10%, 50/60Hz, ≤4kW | |
| Net Weight | 60kg | |
| Furnace Size (L×W×H) | 300mm×200mm×120mm | |
| Dimension (L×W×H) | 740mm×400mm×670mm | |
