5E Series Sample Divider
The 5E Series Sample Divider is an advanced automated division apparatus that simulates manual division. It is ideal for sample division in industries such as coal mining, iron ore, metallurgical coke, and chemical industry.
Product Category: Sample Preparation, Coal, Metal Ore Mining, Cement & Non-metallic resources, Dividers & Mixers.
Features

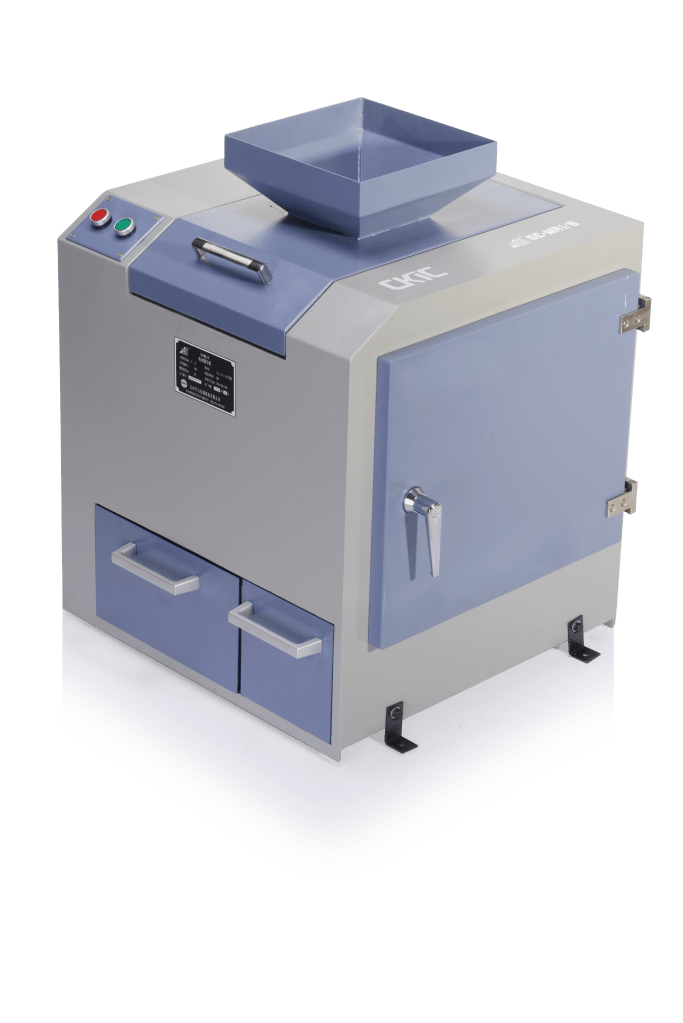

5E-MR1/8 Sample Divider
- Dust-free operation due to complete sealed design.
- Easy to clean with no risk of sample mixing.
- Patent technology allows for easy adjustment of the division ratio.

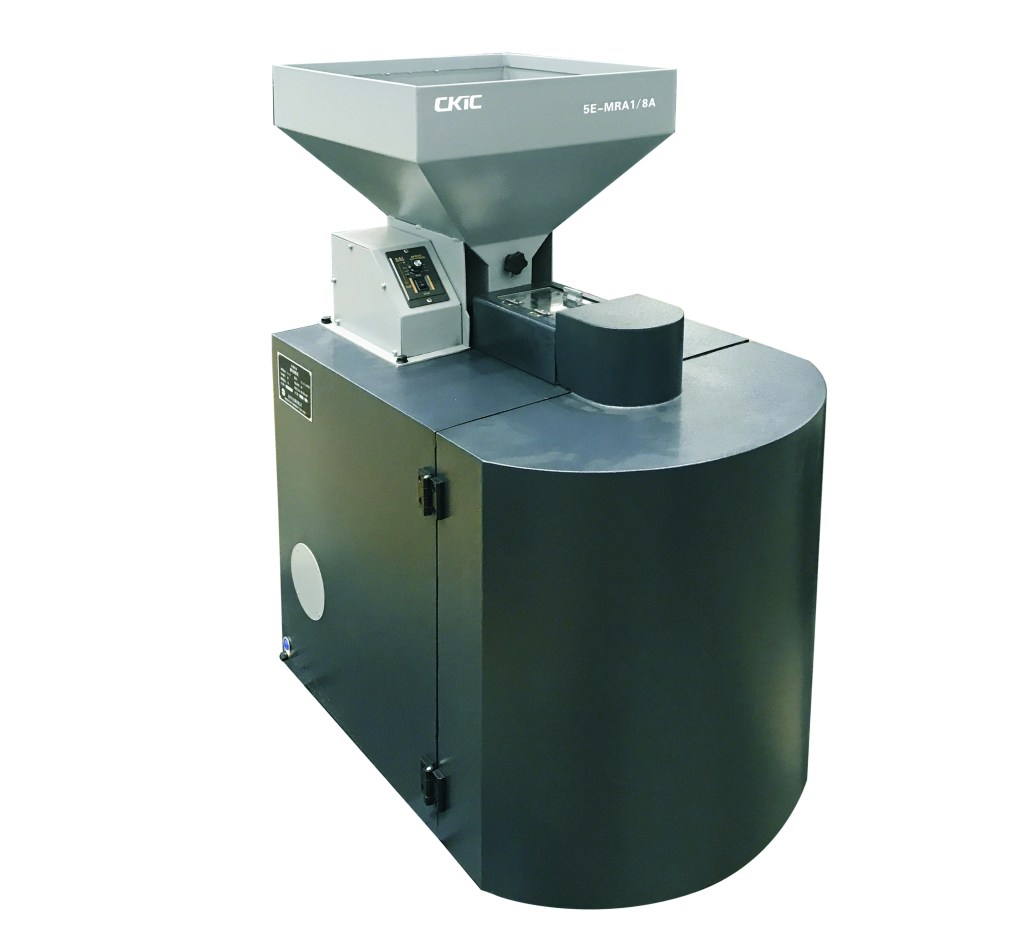

5E-MRA1/8 Rotary Sample Divider
- Vibrating feeder ensures even material feeding.
- Adjustable rotary speed and feed location.
- Compact structure with easy installation and uninstallation of receiving buckets.
Application
The 5E Series Pulverizer is designed to pulverize samples after crushing in industries such as power plants, coal mines, chemical industry, metallurgy, building materials, and geology. It is used to prepare analysis samples of particulate material.
For more information or inquiries, please contact us.
Datasheet
| Model | 5E-MR1/8 Sample Divider | 5E-MRA1/8 Rotary Sample Divider |
| Feed Size | ≤13mm | ≤13mm |
| Dividing Ratio | 1/2,1/4,1/8 (Adjustable) | A(Default Option): 4 buckets (1×1/2,1×1/4,2×1/8) B: 6 buckets (2×1/4,4×1/8) C: 8 buckets (8×1/8) |
| Throughtput | 800kg/h | Max. 350kg/h |
| Moisture Adaptability | ≤12% | ≤12% |
| Power Supply | 3 phases, AC380V±10%, 50/60Hz, 200W | Single phases, AC220V±10%, 50/60Hz , 250w |
| Noise | ≤40dB | ≤80dB |
| Total Capacity of Buckets | / | 40kg |
| Net Weight | 60kg | 130kg |
| Dimensions(L×W×H) | 720mmx660mmx750mm | 855mmx560mmx1010mm |
