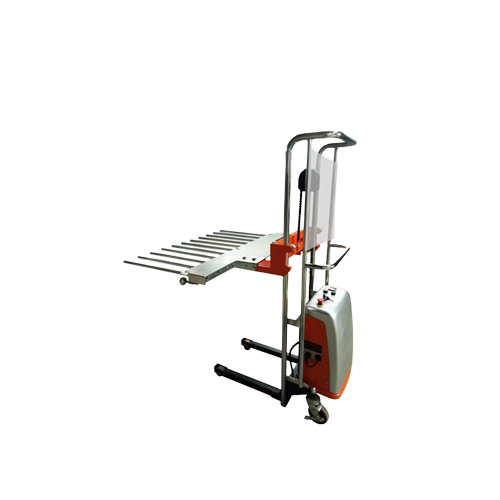

Electric Crucible Trolley

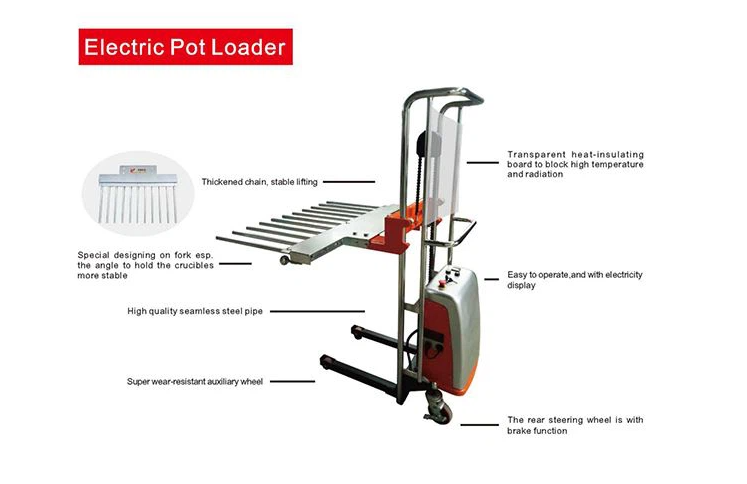

The electric crucible loader is designed to evenly place crucibles in a high-temperature melting furnace, avoiding direct contact with the staff, ensuring operator safety, and improving work efficiency. The loader features a movable frame with a guide wheel, a lifting mechanism with a hydraulic cylinder, and a controller with essential switches and a voltmeter. It has a loading capacity of 25 or 50 pots at a time, making it time-saving and efficient. The control panel enables easy lifting and pot placing actions.
Product Category: Fire Assay, Tools.
Features
The loader also includes a high-intensity steering wheel with brakes for safe and stable movement, and a built-in charger for easy maintenance-free battery charging with a 5-year warranty. It utilizes an imported lightweight and flexible hydraulic pump station.
- Loading capacity options: 25 pots or 50 pots at a time.
- Easy-to-use control panel for lifting and pot placing actions.
- High-intensity steering wheel with brakes for safe and stable movement.
- Built-in charger for easy maintenance-free battery charging.
- Imported lightweight and flexible hydraulic pump station.
Datasheet
| Model | Capacity | Max Load (Kg) | Lifting Height (mm) | Fork Size (mm) | Battery |
| YX-PL25E | 25 | 400 | 1500 | 900x650x60 | DC12V,60AH |
| YX-PL50E | 50 | 400 | 1500 | 900x1200x60 | DC12V,60AH |
