Handheld LIBS Aluminum Alloy Analyzer

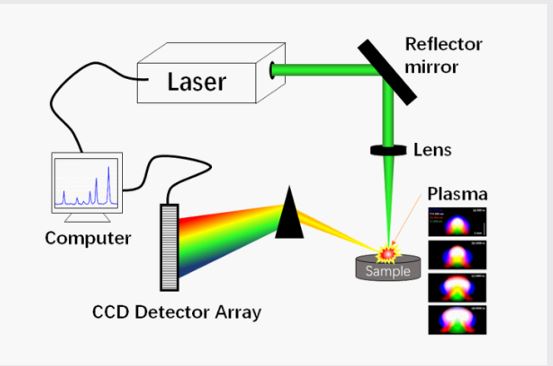

The LHA1000 handheld LIBS aluminum alloy analyzer is a portable alloy analyzer independently developed by Jinhai Vision based on the Laser Induced Breakdown Spectroscopy (LIBS) technology. It is specifically designed for the classification and quality inspection of aluminum alloys. By using high-energy pulsed laser to excite the surface of aluminum alloys to generate plasma, combined with a high-precision spectrometer and AI algorithm, it can complete the qualitative and quantitative analysis of elements such as Al, Si, Cu, and Zn in aluminum alloys within 5 seconds. The detection accuracy reaches the ppm level. The device adopts an integrated handheld design, with a total weight of only 1.8kg. It is equipped with an industrial-grade dust-proof and shock-resistant structure, suitable for a wide temperature range of -10℃ to 40℃, and can cope with various complex working
conditions.
Product Category: Rapid Analysis for QA/QC, Elemental Analyzer, Cement & non-metallic resources, Coal, Metal Ore Mining, Nuctech.
Application
Features
Quick non damage detection. Non-contact detection, no sample preparation required, applicable to various forms of solid/powder samples.
Multi-element coverage. The detection range covers all types of aluminum alloys from series 1 to series 7, including light elements and heavy metal elements. The detection limit is as low as the ppm level.
Industrial-grade durability. Industrial -grade protection, operating withing the wide range of -10C° to 40C°, suitable for various such as factories and outdoors.
Intelligent integration. The equipment integrates Beidou positioning and 4G/WIFI networking functions and supports data upload to business systems.
Technical Data Sheet
Technology & Performance
