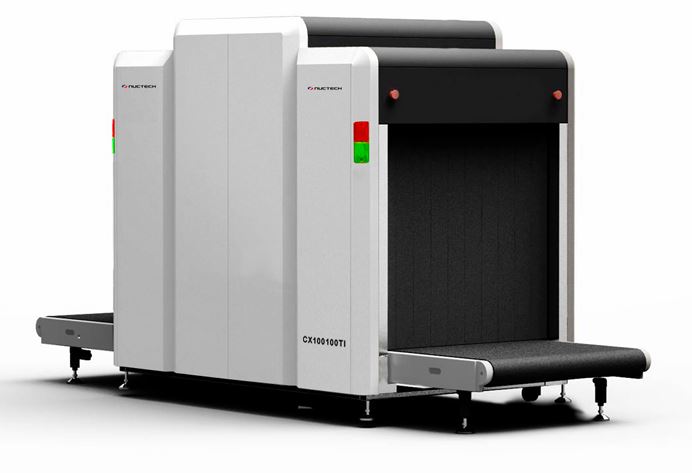

The NUCTECH™ CX100100TI-Ore Particle Size Distribution Analyzer

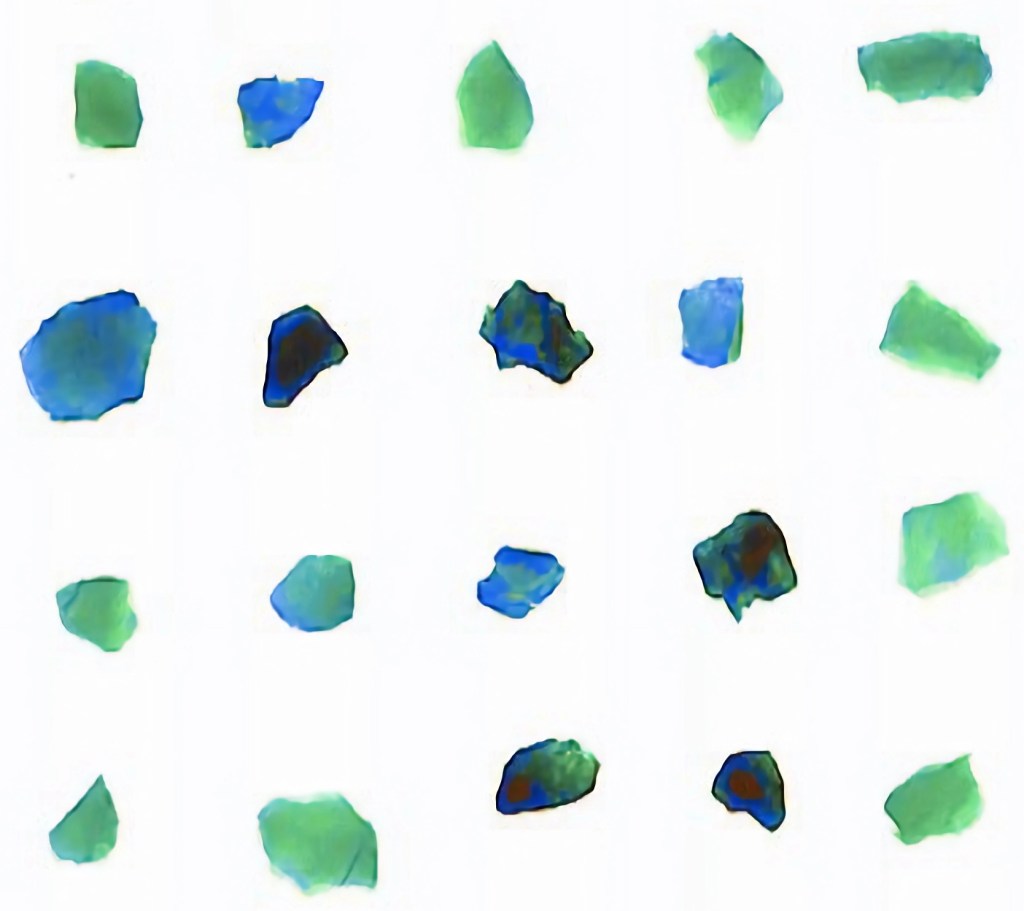

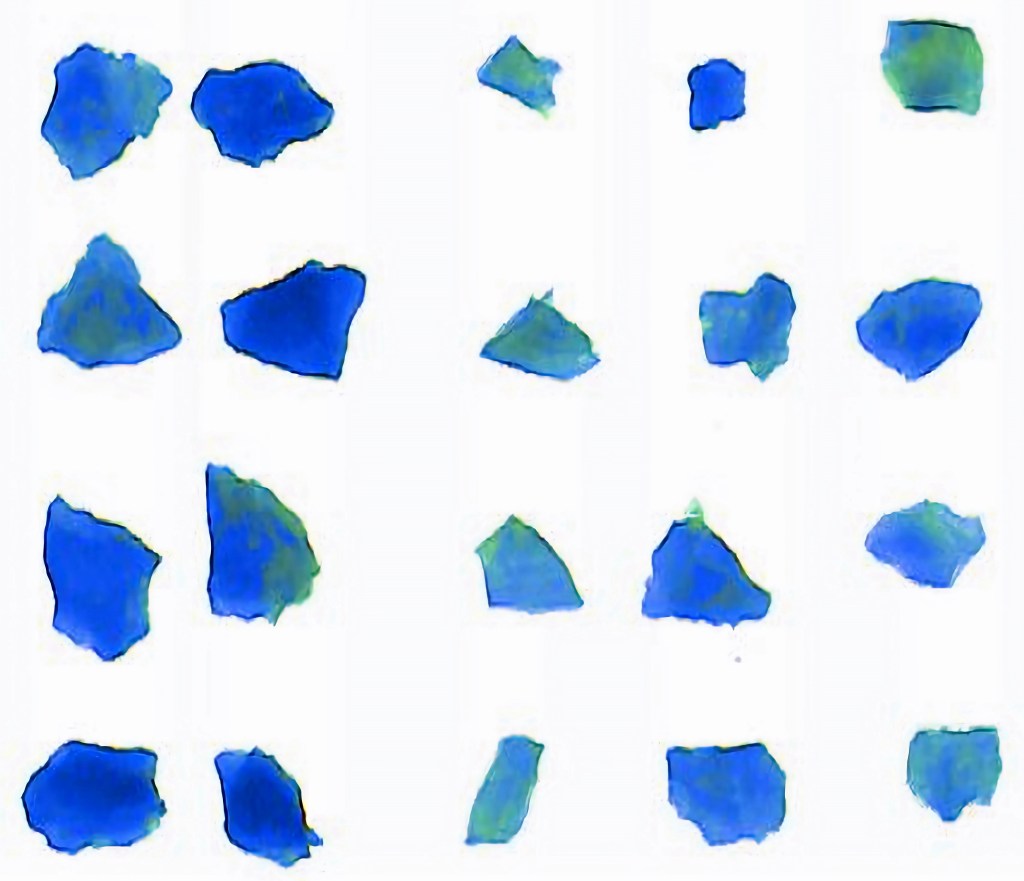

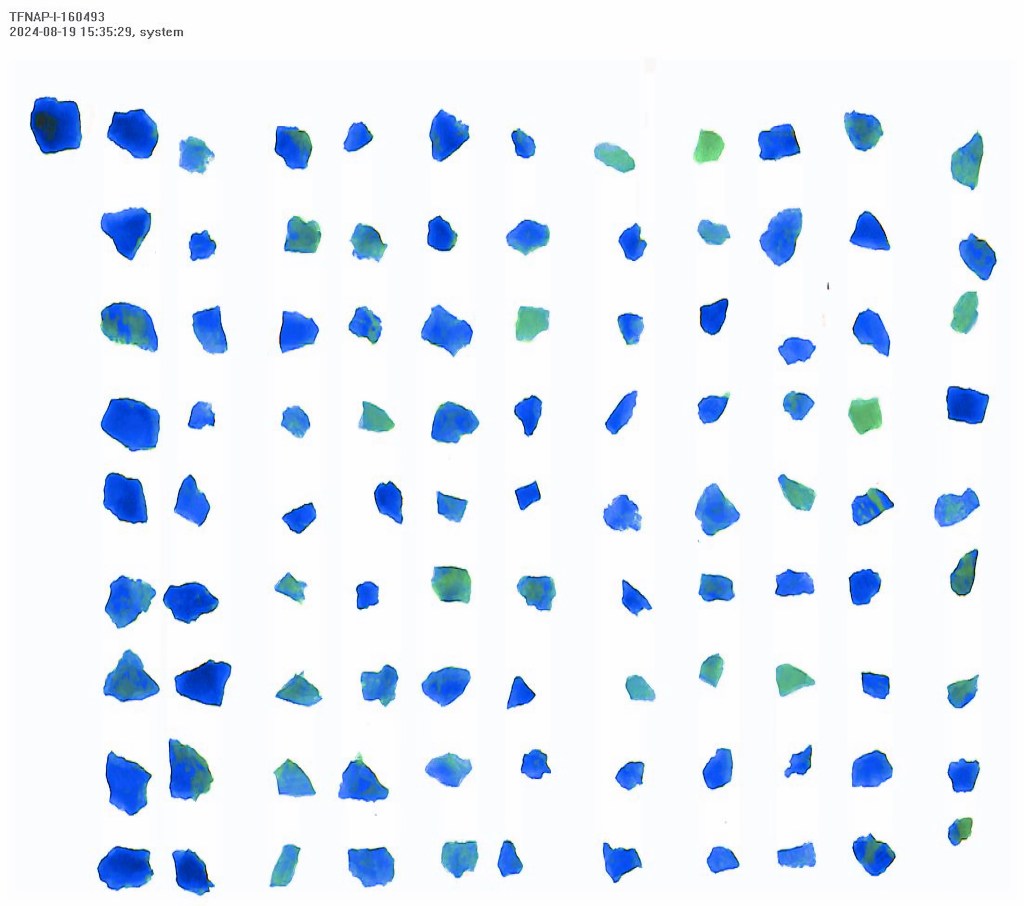

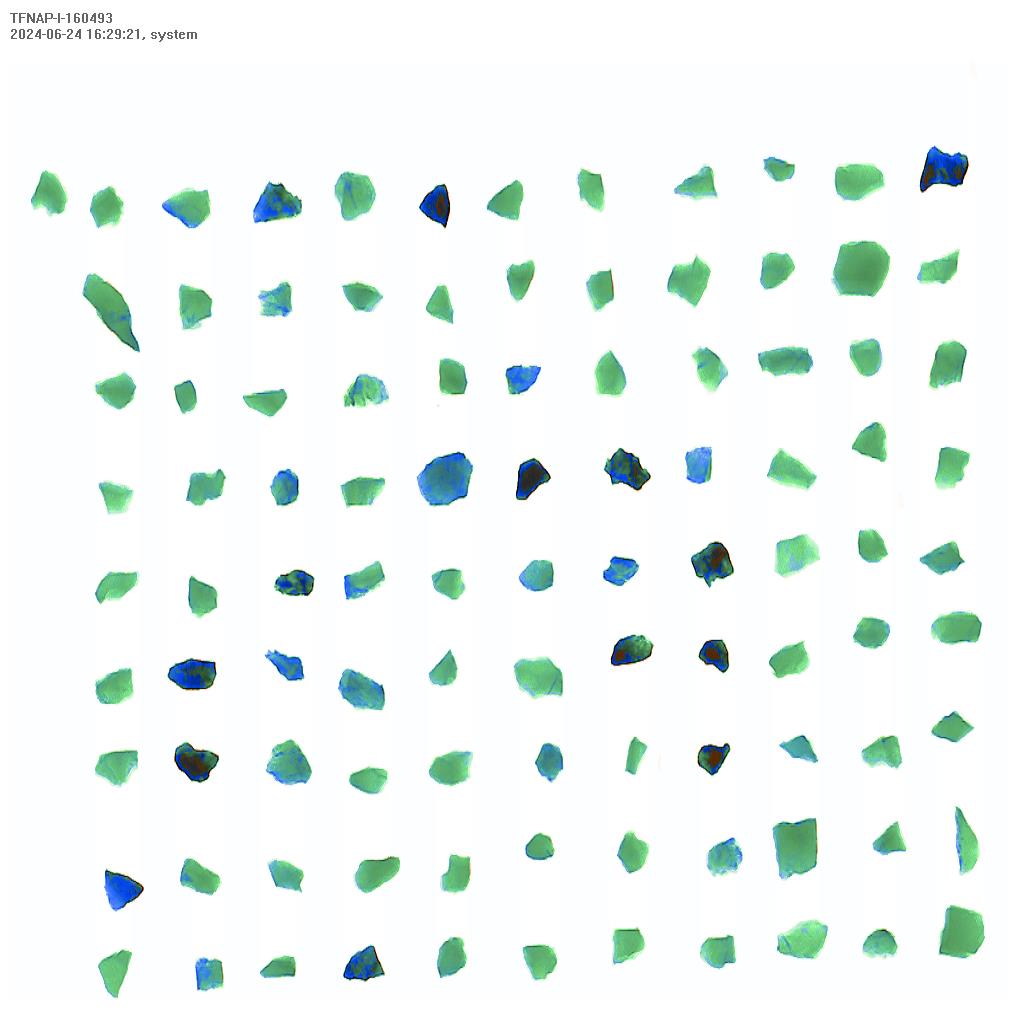

The NUCTECH™ CX100100TI is a next‑generation dual‑energy X‑ray inspection system designed specifically for ore sample XRT testing. With a large 1010 × 1005 mm tunnel and high‑resolution imaging, it delivers fast, reliable assessments of crushed ore size distribution, fine and coarse fractions, and ore‑sorting feasibility.
Engineered for small‑batch sample testing, the CX100100TI combines exceptional image quality, advanced material classification, and industry‑leading safety standards—making it an ideal tool for laboratories, mining operations, and process optimisation studies.
Product Category: Rapid Analysis for QA/QC, Slurry Analyzer, Metal ore mining, Nuctech.
Features
High‑Quality X‑Ray Imaging
- Wire resolution up to 38 AWG
- Steel penetration up to 35 mm
- Dual‑energy imaging for accurate material discrimination
- Supports stepwise, continuous, and magnifier viewing modes
Advanced Material Classification
- Classifies materials based on atomic number signatures
- Ideal for ore sorting feasibility studies and economic evaluations
Efficient Sample Screening
- Ergonomic interface and operator‑friendly controls
- Images can be saved in standard formats (BMP, JPG, GIF, TIFF)
- USB export supported for fast reporting and data transfer
Safe and Reliable Operation
- X‑ray leakage kept near natural background levels
- Fully compliant with international radiation safety standards
- Guaranteed film safety up to ASA/ISO1600
Robust, Maintainable Design
- Dual‑direction scanning and extensive system management functions
- Modular construction for easy servicing
- Built‑in diagnostic tools for rapid troubleshooting
Application
- Crushed ore particle size distribution analysis
- Fine and coarse fraction evaluation
- Ore‑sorting feasibility studies
- Economic analysis for ore‑sorting projects
- Laboratory and pilot‑scale mineral processing research

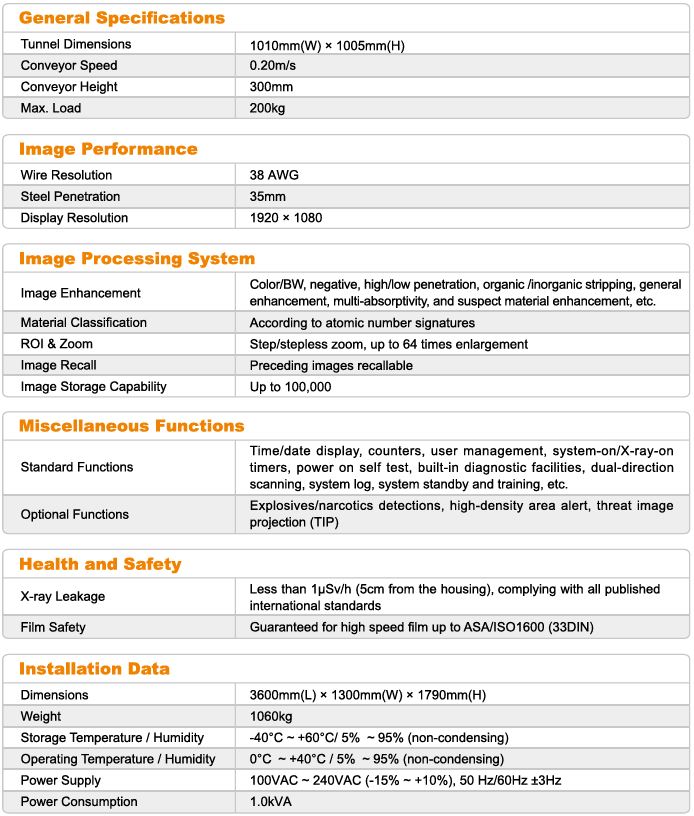

Technical Specification
