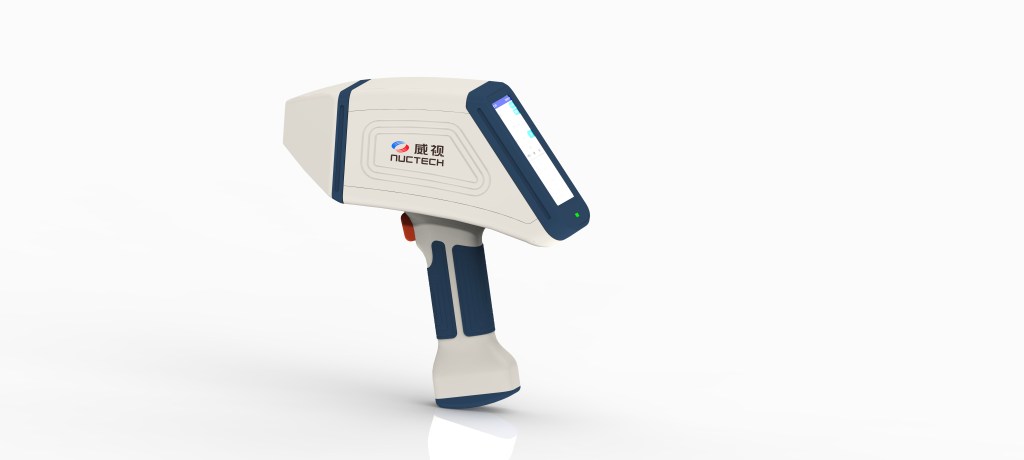

Nuctech ®MG series handheld mineral grade analyzer

The Nuctech® MG series handheld mineral grade analyzer is a portable mineral analysis instrument independently developed by Tongfang Nuctech based on Laser Induced Breakdown Spectroscopy (LIBS) technology. It is specially designed for mineral exploration, mining optimization and industrial inspection. By using high-energy pulsed laser to
excite the surface of the mineral to generate plasma, combined with high-precision spectrometer and AI algorithm, it can complete the qualitative and quantitative analysis of light elements such as Li, Be, B, C and heavy metal elements such as Fe, Cu
, Pb in the mineral within 10 seconds, with detection accuracy reaching the ppm level, covering all elements from Li to U in the periodic table. Equipped with an industrial grade dust-proof and shock-proof structure, it can adapt to a wide temperature range from -10℃ to 40℃. The device adopts an integrated handheld design, with a total weight of only 1.8kg, and can cope with complex working conditions such as open-pit mines and underground tunnels.

Product Category: Rapid Analysis for QA/QC, Elemental Analyzer, Cement & non-metallic resources, Coal, Metal Ore Mining, Nuctech.

Application

Features

Rapid detection of minor damage Non-contact detection, no sample preparation required, suitable for solid/powder multi-form samples. Multi-element coverage
The detectable range covers the full element detection from Li to U, including light and heavy metal elements, with a detection limit as low as the ppm level.
Industrial-grade durable Industrial-grade protection, wide temperature range operation from 10℃ to 40℃, suitable for harsh environments such as underground mines and open-pit mines.
Intelligent integration It is equipped with an internal GPS positioning and data cloud platform interface, supporting interlocking control with mineral processing equipment
