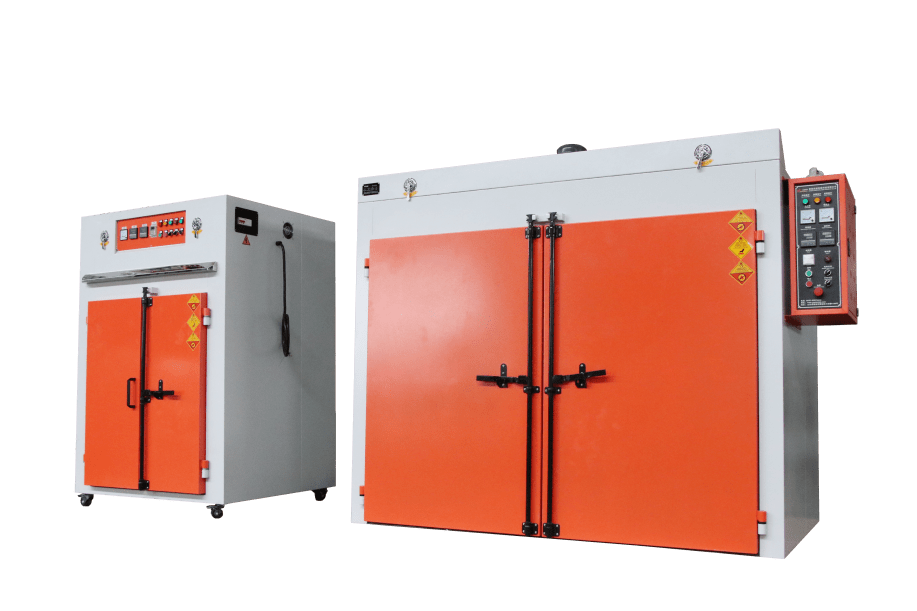

Trolley Oven

Trolley Oven

Electrically heated ovens that have been specifically engineered to withstand the corrosive environment inherently created by the combination of high temperature, moisture and the often chemically active atmosphere created by the drying process.

Product Category: Sample Preparation,  Cement & Non metallic resources, Coal, Metal ore mining, Drying oven & Furnace.


Features

  • Fast drying times.
  • Quick and simple oven loading and unloading ensures minimal heat is lost from the oven.
  • Improved worker health and safety
  • The wheeled trolley provides excellent sample mobility. There is no need to lift samples manually around the laboratory.
  • Stainless steel lining reduces corrosion, minimising sample contamination.
  • Uniform and optimised drying is provided by a stainless-steel recirculating fan and dampening valves.
  • Ergonomically designed trolley fitted with heavy duty, large diameter steel wheels and wire mesh shelves.
  • Digital temperature control provides precise and accurate control of drying temperature which can be critical for geochemistry applications.
  • Automated over temperature control plus separate thermocouple and mechanical thermostat circuit.
  • Robust door latch has an internal release.

Datasheet

ModelYD-2000TYD-4000TYD-10000T
Volume(L)2300420010300
Number of Doors222
Internal Dimension(mm)W1200×D1200×H1500W2100×D1250×H1500W3200×D1700×H1900
External Dimension(mm)W1850×D1500×H2100W2650×D1400×H2100W3800×D1900×H2400
Power Supply380V,3ph,13 Kw380V,3ph,26kw380V,3ph,42kw
Heating Elementstainless steel heaterstainless steel heaterstainless steel heater
Fan motor1500W1500W1500W
External Material1.2mm SS41 steel plate, with rust proof treatment1.2mm SS41 steel plate, with rust proof treatment1.2mm SS41 steel plate, with rust proof treatment
Internal liningstainless steelstainless steelstainless steel
Insulation Materialfiberglass insulationfiberglass insulationfiberglass insulation
Trolley Materialstainless steelstainless steelstainless steel
Trolley Dimension(mm)W400 xD1000 xH1440W850 x D1150 x H1450W650 x D1600 x H1700
Shelves per Trolley668
Number of Trolley224
Maximum Operating Temperature120 ℃120 ℃120 ℃
Safetyover temperature protector, motor phase sequence, overload protector, buzzer.over temperature protector, motor phase sequence, overload protector, buzzer.over temperature protector, motor phase sequence, overload protector, buzzer.
