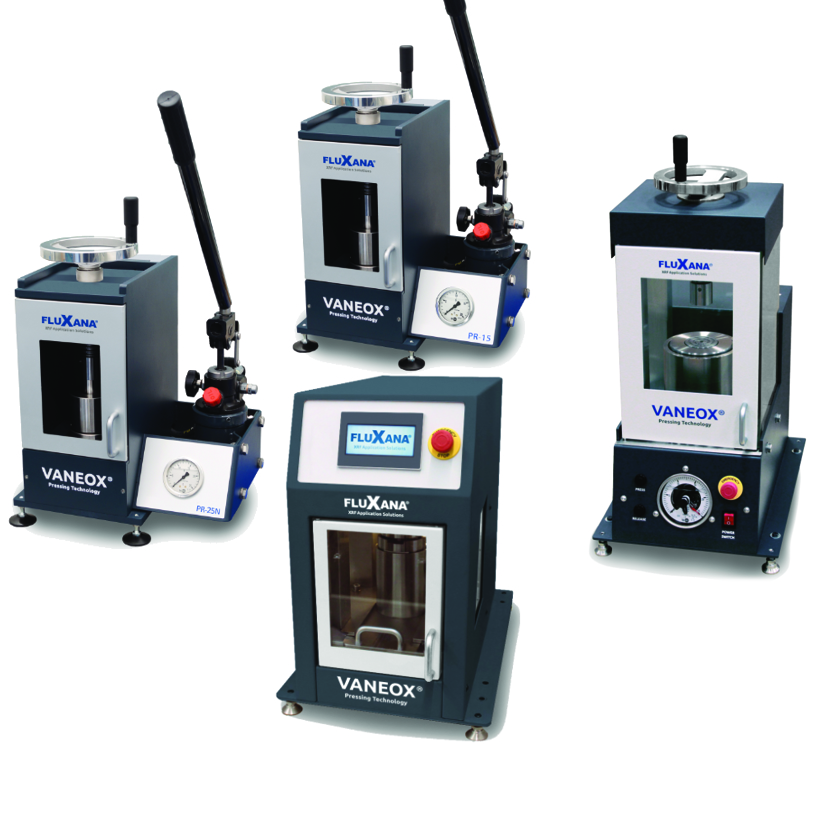

VANEOX 15-40t Press

VANEOX® presses offer a large range of high-quality presses that are suitable for every area of application.

Product Category: Sample Preparation, Specific sample preparation for analytical instruments, Press.

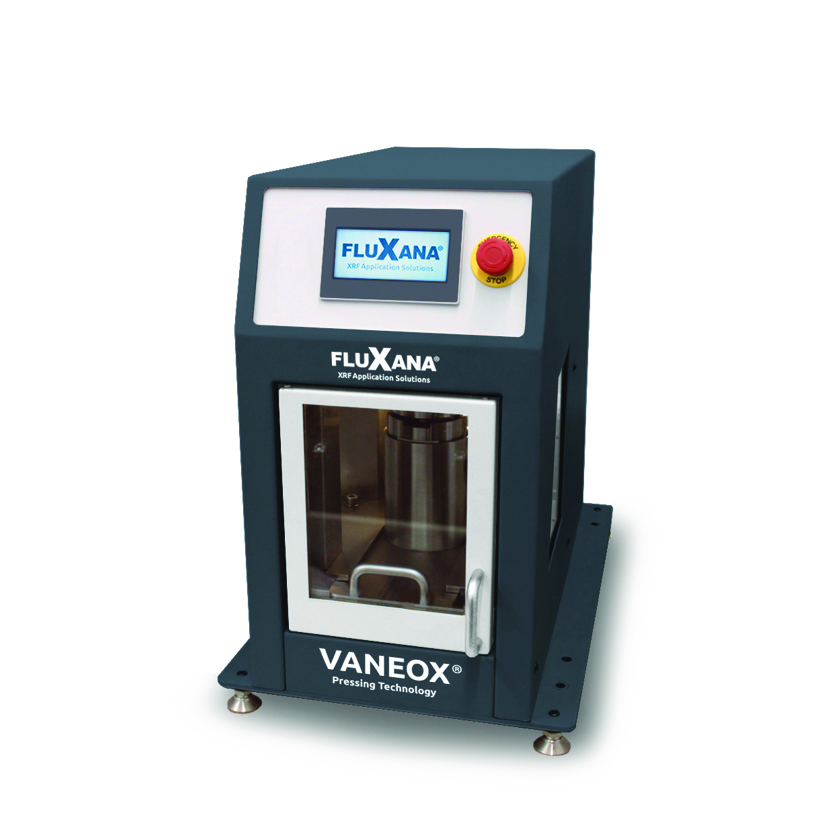

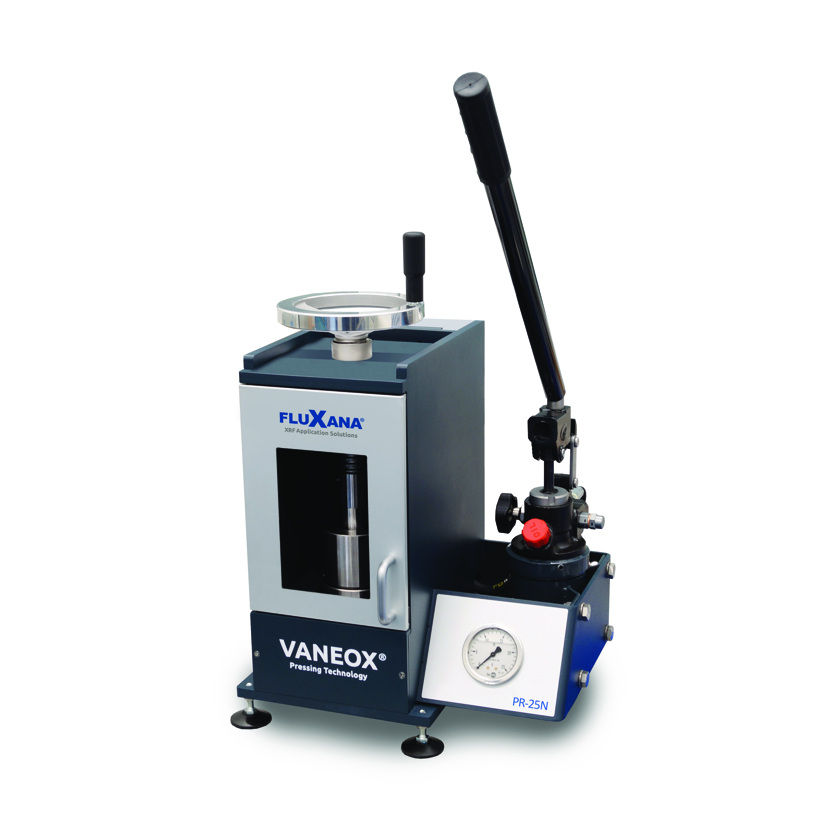

Model	PR-15(15t manual)	PR-25N(25t manual)	PR-25A(25t electric)	PR-40(40t electric)
Max pressure	15t	25t	25t	40t
Pressure display	0-20t	0-25t	0-25t	Touch display
Piston	100 mm	100 mm	115 mm	100 mm
Stroke	16 mm	16 mm	30 mm	60 mm
Bolster screw diameter	40 mm	40 mm	40 mm
Bolster screw travel	200 mm	200 mm	200 mm
Min distance between pressing faces	95 mm	95 mm	70 mm
Max distance between pressing faces	165 mm	165 mm	170 mm
Dimensions (L x W x H)	310 x 400 x 560 mm	310 x400 x 560 mm	340 x 475 x 840 mm	340 x 550 x 490 mm
Weight	76 kg	76 kg	115 kg	120
