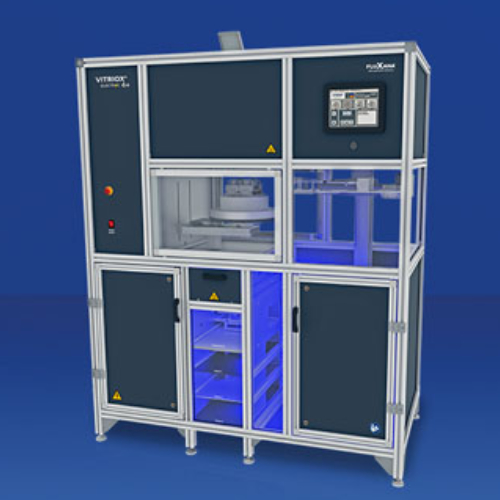

VITRIOX ELECTRIC 4+
The VITRIOX® ELECTRIC 4 + is a fully automatic fusion machine with cold to cold operation for 4, 8, 12 or 16 samples (4 samples at a time). It has been designed to achieve the best possible results in day-to-day XRF laboratory routine while offering a high throughput.
Product Category: Specific Sample Preparation for Analytical instruments, Agriculture & Environment, Coal, Metal Ore Mining, Cement & Non-metallic resources, Fusion machine.
Features
Safety:
- Casting dish monitoring.
- Flux resistant FLUXinert® ceramics.
- Safety housing with autolock function.
High Precision:
- Closed oven with lift bottom for precise temperature control.
- Unique high speed 3D rotation for agitation.
- Equal temperature distribution.
Application:
- Complete XRF solutions with a wide range of calibrations
- 100 applications possible
- Volatile element anaylsis
- Use of quartz crucibles
- Use of lids
Flexibility:
- 4 different applications in one run.
- Modular design.
- Continuous operation.
Ergonomic:
- Autosampler handles samples automatically.
- Sample observation via mirror.
- Touch display with easy to use software and USB port.
- Ready for LIMS.
Datasheet
| Samples | 4/fusion |
| Sample holders | 1-4 (4 crucibles each) |
| Voltage | 400 V/50 Hz |
| Power | 7500 W |
| Power supply | 3- phase AC/ 16 A |
| Temperatures | 0 – 1,250 °C |
| Permiss. Air pressure | 6 bar |
| Air consumption | max 2.1 m3/hr |
| Protection | IP20 |
| Weight | 500 kg |
| Dimension (LxWxH) | 1500 mm x 750 mm x 1800 mm |
